Name: ISO 9239-1 & ASTM E648 Flooring Radiant Panel Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY401
Price: 4,355.00 USD
Availability: InStock

Evde > Ürünler > Yangın Test Cihazları >

ISO 9239-1 & ASTM E648 Flooring Radiant Panel Test Apparatus

ISO 9239-1 flooring radiant panel tester

ASTM E648 fire testing equipment

radiant panel test apparatus for flooring

Menşe yeri:

Çin

Marka adı:

YUYANG

Sertifika:

GB / T11785, ISO9239-1, ASTM E648

Model numarası:

YY401

Bizimle İletişim

Bir teklif isteği

ISO 9239-1 & ASTM E648 Flooring Radiant Panel Test Apparatus

Ürün Ayrıntıları

Ürün Adı:

Döşeme Radyant Panel Test Cihazı Isı Akısı Test Cihazı

Standart:

ISO 9239-1, ASTM E648, NFPA 253

Radyant Isı Kaynağı:

30° eğimli gözenekli seramik radyant panel

Sıcaklık akış ölçer:

0 ila 15 kW/m²

Oda İnşaatı:

Isıya dayanıklı yalıtımlı SUS304 paslanmaz çelik

Ortam Sıcaklığı:

10 ℃ - 35 ℃

Yanan Gaz:

Propan

Amaç:

Zemin kaplamasında kritik radyant akı ve alev yayılımının belirlenmesi

Güç Kaynağı:

AC 220V,50HZ

Vurgulamak:

ISO 9239-1 flooring radiant panel tester

ASTM E648 fire testing equipment

radiant panel test apparatus for flooring

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 Takım

Fiyat

negotiable

Ambalaj bilgileri

kontrplak kutu

Teslim süresi

25 iş günü

Ödeme koşulları

T/T

Yetenek temini

Çeyrek başına 4 set

İlişkili Ürünler

Video

YUYANG ISO 9239-1 ve ASTM E648 Zemin Radyant Panel Test Cihazı

En İyi Fiyatı Bulun

Yangın Deneme Ekipmanı Tekstil Denemesi için Parlak Tel Denetleyicisi OEM Özel Dikey Yüksek Doğruluk IP65 Koruma 1 Yıl

En İyi Fiyatı Bulun

Yangın Deneme Ekipmanı Güneş hücresi Alev yayılması ve yanma markası test makinesi

En İyi Fiyatı Bulun

IEC 60331, BS 6387, EN 50200 Elektrik Kabloları Devre Bütünlüğü Yanma Test Cihazı

En İyi Fiyatı Bulun

Bizimle İletişim

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Şimdi iletişime geçin

Ürün Tanımı

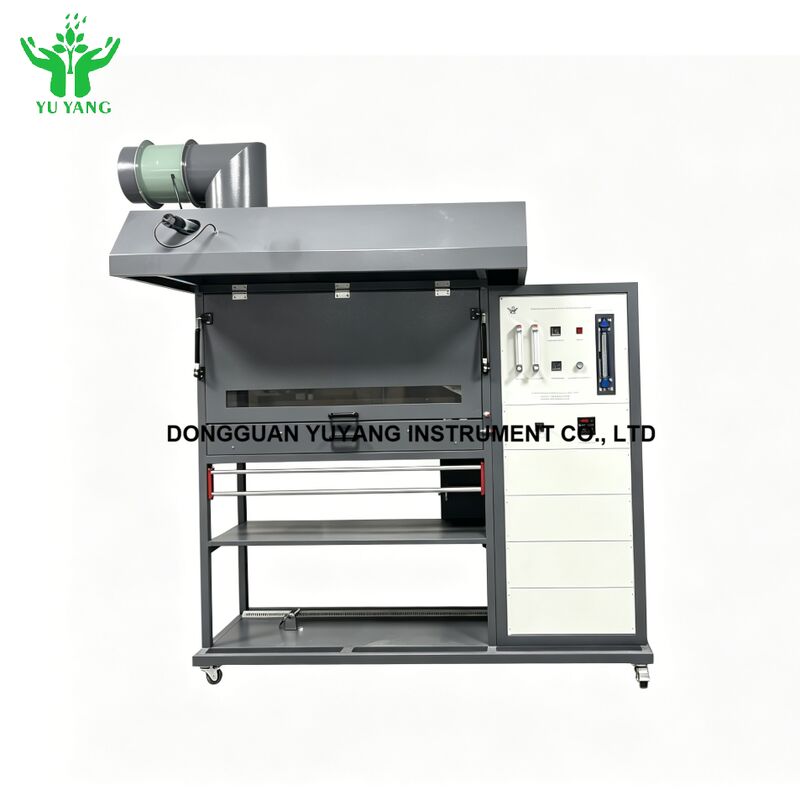

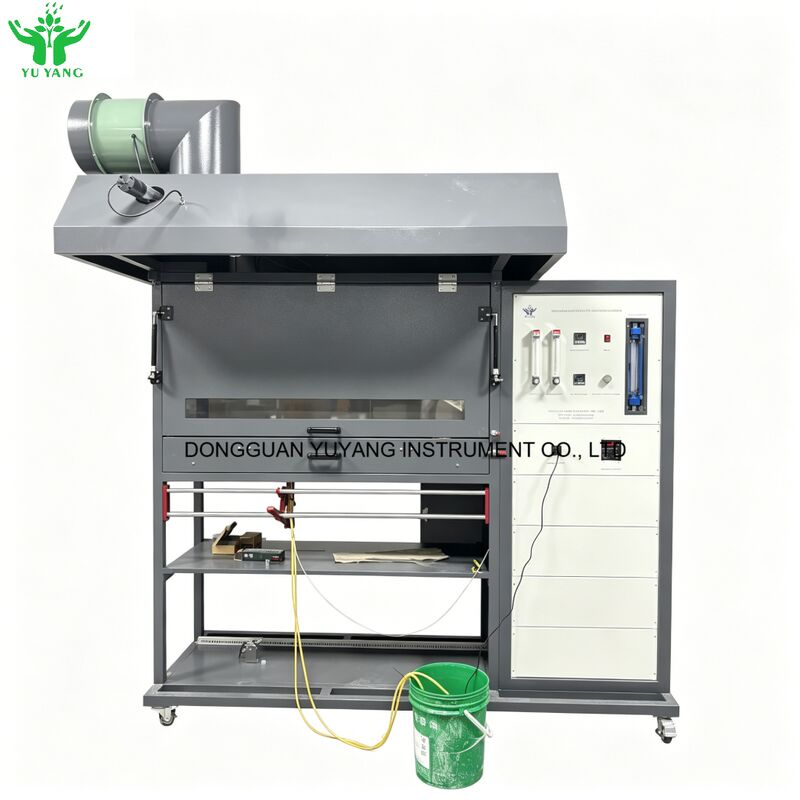

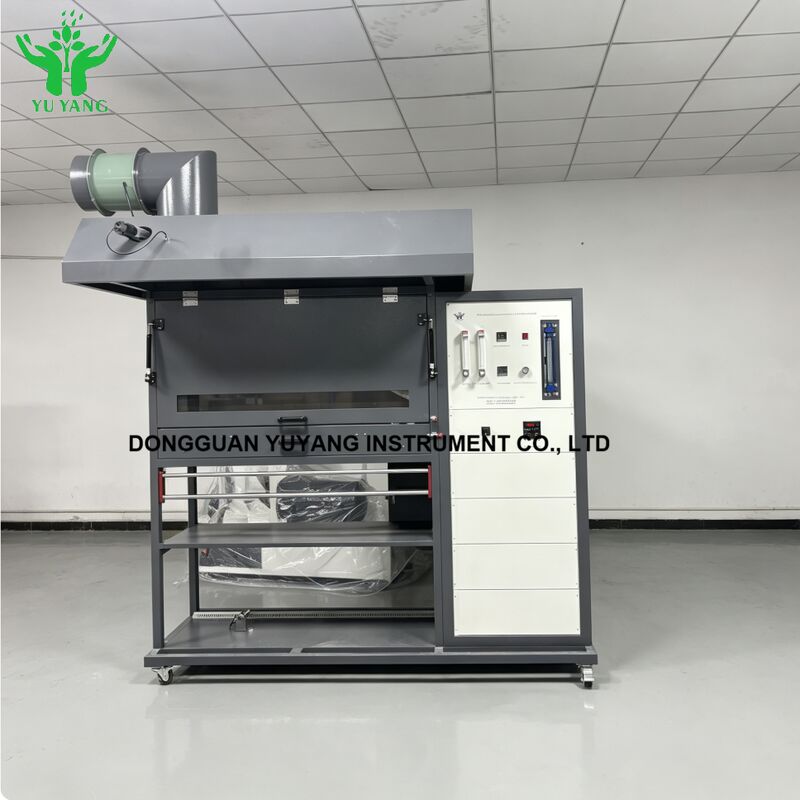

ISO 9239-1 & ASTM E648 Flooring Radiant Panel Test Apparatus

The ISO 9239 Radiant Flooring Panel test serves as the foundation for evaluating flooring materials' reaction to fire within the Euroclass system. This apparatus measures flame spread across samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate through door openings onto flooring in adjacent rooms or corridors. The equipment is also compliant with ASTM E648 standards.

Compliance Standards

ISO 9239-1: Fire reaction test of flooring materials - Part 1: Testing combustion behavior using radiant heat sources
ISO 9239-2: Fire reaction test of flooring materials - Part 2: Testing flame spread at 25㎾/㎡ heat flux
ASTM E 648: Standard Test for Critical Radiant Flux of Floor-Covering Systems Using Radiant Heat Energy

Structural Design

Two-part construction: combustion chamber and control chamber
Combustion chamber dimensions: approximately L1420×W1200×H2300 (mm)
Chamber material: High-quality 304 stainless steel plate with CNC machine processing
Blowtorch: Fully compliant with GB/T 11785 requirements
Mechanical components: 304 stainless steel or 45# steel for corrosion and rust resistance

Key Features

Front door design for easy cleaning of test box interior
High-temperature resistant calcium silicate board inner walls
Stainless steel smoke collection hood above combustion test box
300mm × 450mm porous ceramic heat radiation panel at 30-degree angle
T-shaped porous burner with cylinder push mechanism for open flame application
Automated shutter system for silicon photodiode calibration via computer software
Rotor flowmeter for precise T-type burner flame height adjustment
Digital propane mass flow meter for radiant panel gas flow control
Integrated blower with Venturi mixture test capability
Mass flow controller for radiant panel air inlet flow regulation
Water-cooled heat flow meter (0-50 kW/m² range) with portable cooling system
Movable heat flow meter for thermal radiation flux calibration
Foot switch for automatic flame spread time recording
Chimney and box thermocouples with computer software display
Comprehensive software displaying thermal radiation flux, smoke density, transmittance, and wind speed data

Application Range

This flooring radiant heat flux test device evaluates horizontally placed paving materials exposed to slanted heat radiation fields with small flame ignition. Suitable for various flooring materials including textile rugs, cork boards, wood boards, rubber sheets, plastic flooring, and floor spray materials.

Technical Specifications

Maximum operating power	5kW
Timing accuracy	<1s/h
Heat flux meter measuring range	(0-15) kW/m²
Heat flux meter accuracy	±0.2 kW/m²
Heat radiation pyrometer range	400-600℃, accuracy ±0.5℃
Black body temperature error	±5℃
Smoke speed	(2.5±0.2) m/s
Smoke capacity	(39-85) m³/min
Porous refractory radiation panel size	300mm×450mm, capable of ~900℃ high temperature
Thermocouple	Diameter 3.2mm K-type stainless steel armored thermocouple
Burning torch	Diameter Ø10mm/Ø6mm, 35 Ø0.7mm holes on spray tube
