Name: ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF008
Price: 25,000.00 USD
Availability: InStock

Evde > Ürünler > Yanıcılık Test Cihazları >

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Menşe yeri:

Guangdong, Çin

Marka adı:

YUYANG

Sertifika:

Model numarası:

YYF008

Bizimle İletişim

Bir teklif isteği

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

Ürün Ayrıntıları

Isı akısı aralığı:

0-15 Kw/m2

Isı akısı doğruluğu:

±0,2Kw/m2

Egzoz Hızı:

2,5±0,2 m/sn

Alev yüksekliği:

60-120mm ayarlanabilir

Ateşleme sistemi:

Yüksek voltajlı elektronik

Gaz akış hızı:

0,026±0,002 L/S

Toplam Güç:

2KW

Güç Kaynağı:

AC 220V, 50Hz

Radyant enerji akışı:

1,1-10,9 kW/m2

Isı akısı ölçer aralığı:

0-50 kw/m2

Yüzey emisyoni:

ε=0,95±0,05

Çalışma Gerilimi:

230V, 10A

Çalışma Sıcaklığı:

10°C ila 35°C

Radyant panel açısı:

30°

Gaz tedariki:

Propan ve hava kompresörü

Vurgulamak:

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Ödeme ve Nakliye Şartları

Min sipariş miktarı

İlişkili Ürünler

BS 476 Bölüm 7 Bina Malzemesi Yüzey Alev Yayılma Test Cihazı Elektronik

En İyi Fiyatı Bulun

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

En İyi Fiyatı Bulun

ISO 834 BS 476 Bölüm 20&22 Yapı Malzemeleri ve Yapılar Dikey Yangın Dayanımı Test Fırını

En İyi Fiyatı Bulun

Konik Kalorimetre Isı Salım Hızı Yanmazlık Test Cihazı Elektronik Makine Test Cihazı

En İyi Fiyatı Bulun

Bizimle İletişim

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Şimdi iletişime geçin

Ürün Tanımı

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus

This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.

Product Overview

The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.

This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.

Compliance Standards

• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy

Key Features

Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
Stainless steel sample support assembly on sliding platform for safe and easy sample loading

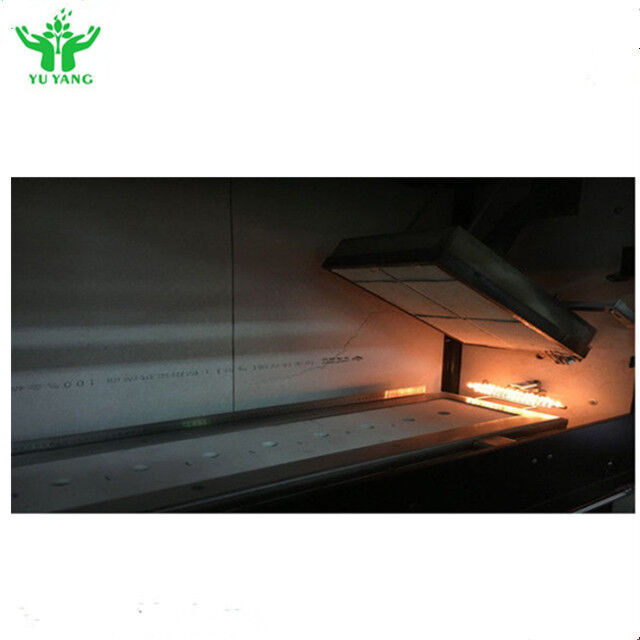

Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
Dummy calibration specimen with holder and calibrated heat flux meter
Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
Integrated smoke measuring system according to DIN 50055

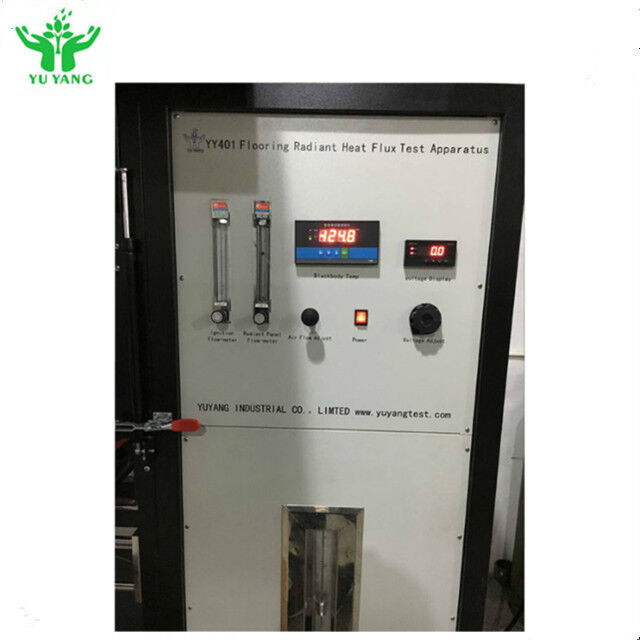

Control rack for convenient observation and operation during setup and calibration
Automatic ignition of radiant panel with safety cut-out
Automatic moving T-type ignition burner
Stainless steel hood with smoke measurement ports

Installation Requirements

Parameter	Specification
Electrical	230 volts Nominal, 10 Amps
Ambient Temperature	Operating range: 10°C to 35°C
Gas Supplies	Propane and air compressor

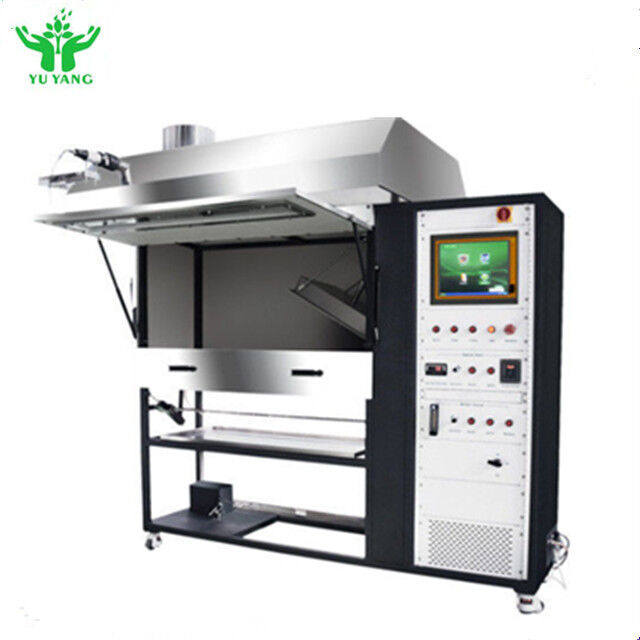

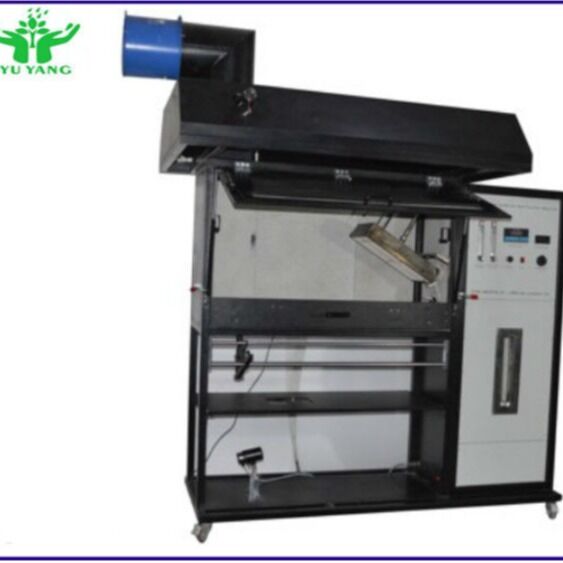

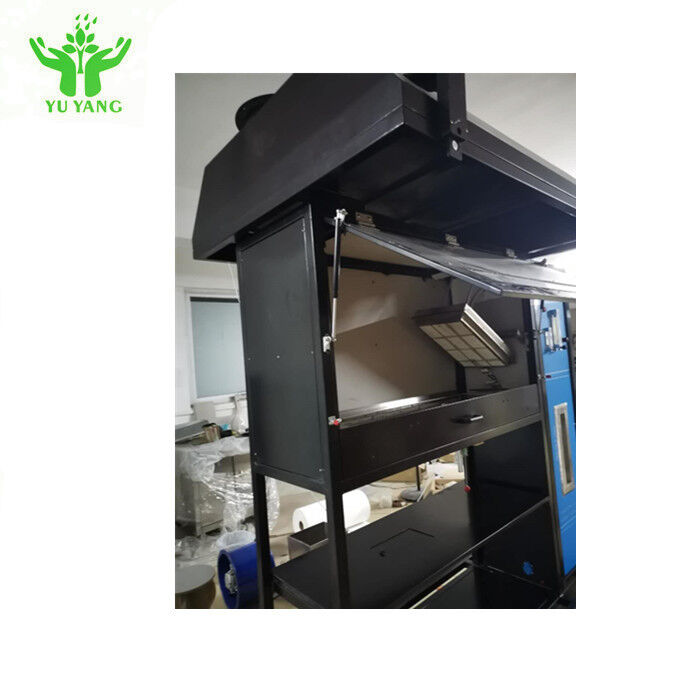

Product Images

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China - a region known for its prosperous industry and convenient transportation.

We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related instruments.

Decades of research and development have established YUYANG as a leader in high-quality, cost-effective testing equipment. Our products are widely used across multiple industries including scientific institutions, colleges, inspection agencies, automotive, electronics, electrical, lithium battery, LED, photoelectric, mobile devices, plastics, rubber, display technology, telecommunications, chemicals, aerospace, building materials, wire and cable, toys, furniture, and textiles.

All YUYANG testing equipment are designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.

DONGGUAN YUYANG INSTRUMENT CO., LTD looks forward to cooperating with customers worldwide and welcomes inquiries about our products or custom orders.
