Ürün Tanımı

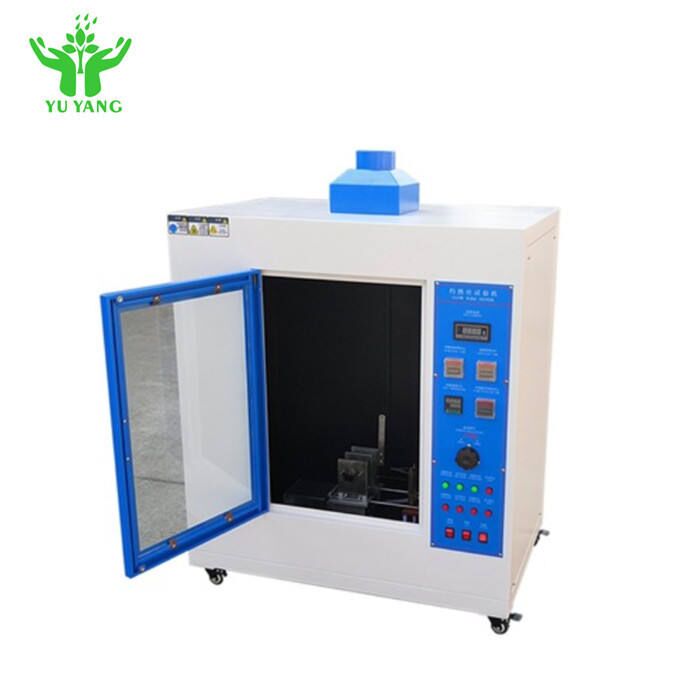

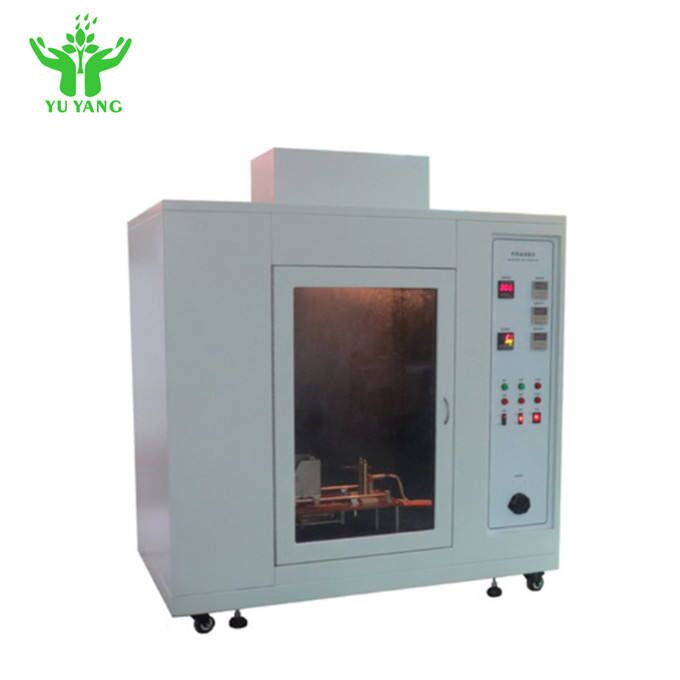

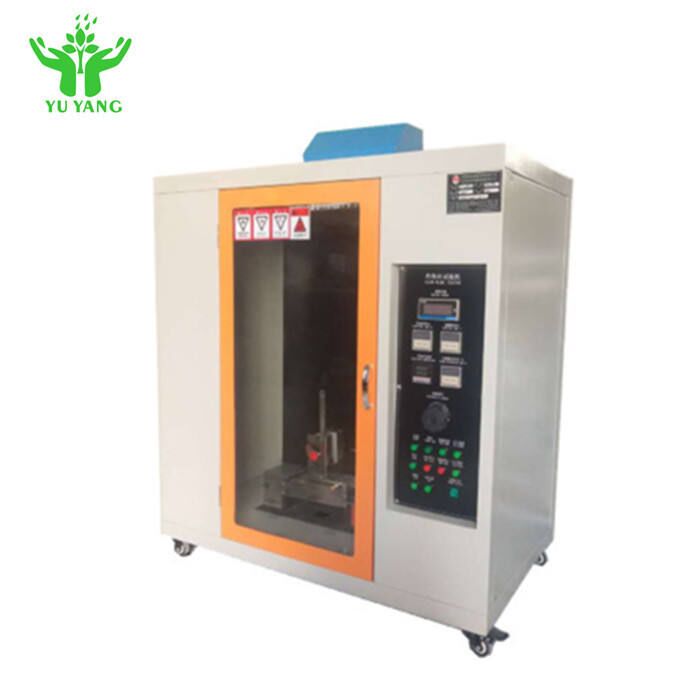

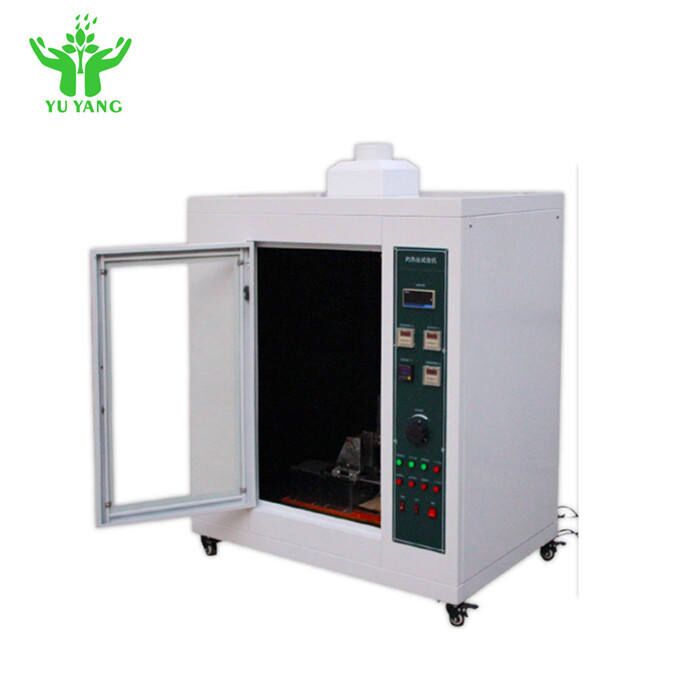

Glow Cable and Wire Tester Machine Glow Wire Tester

Product Overview

The glow wire testing machine is commonly used for electrical engineering components and solid electrical insulation materials or other solid combustible materials. This equipment conforms to GB/T516910-13, EC60695-2-10-2-1/3, GB2099, VDE0620, GB4706 and UL817 test standards.

Test method: The standard resistance wire ring is heated to the specified temperature, and then the hot wire and test sample are contacted with plug socket rubber plastic and other products under the test conditions.

Key Features

Control Panel

Intuitive control, simple operation

LCD Touch Screen

Optional LCD touch screen operation

Imported Equipment

Imported hot spot device, more accurate

Stainless Steel Construction

Optional mirror stainless steel box

Technical Specifications

Warranty	1 year
Certification	IECEE, CE
Customized support	OEM, ODM, OBM
Place of Origin	China
Brand Name	YUYANG
Model Number	YYF052
Power	Electronic
Pressure	0.95N±0.1N
Max Depth	7mm ± 0.5mm
Sample Moving Speed	10mm/s ~ 25mm/s
Test Volume	≥ 0.5m³
Dimension	W 1250mm × D 600mm × H 1150mm
Power Supply	220V 50Hz
Weight	90kg
