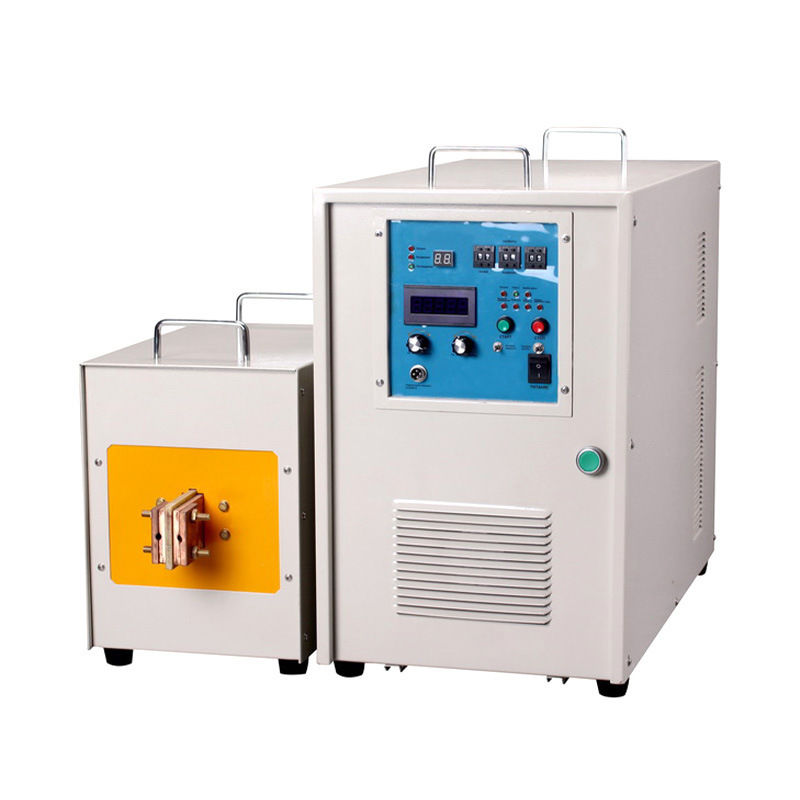

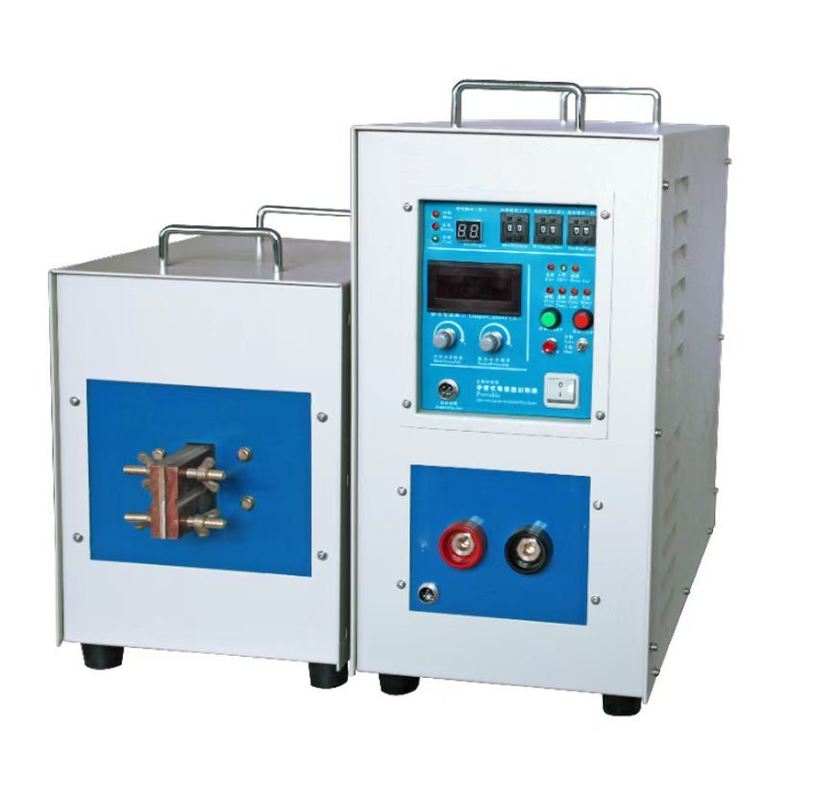

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

400-1800A Induction Heating Machine

0.08-0.16Mpa Electrical Test Set

50C High Frequency Induction Heater

Menşe yeri:

Çin

Marka adı:

YUYANG

Sertifika:

CE/CO

Model numarası:

YYS-40AB

Bizimle İletişim
Bir teklif isteği
Ürün Ayrıntıları
Modeli:
YYS-40AB(Üç fazlı)
İş gücü:
340-430V
Giriş Akımı:
65A
Dalgalanan çıkış gücü:
10-50KHz
Çıktı Akımı:
400-1800A
Soğutma suyunun akış hızı:
0,08-0,16Mpa 9L/Dk
Su sıcaklığı koruma noktası:
50c
Ürün Boyutu:
ana:780*3708620mm; trafo:510*260*410mm
Net ağırlığı:
ana:54kg; trafo:32,5kg
Vurgulamak:

400-1800A Induction Heating Machine

,

0.08-0.16Mpa Electrical Test Set

,

50C High Frequency Induction Heater

Ödeme ve Nakliye Şartları
Min sipariş miktarı
1 takım
Fiyat
1000~3000
Ambalaj bilgileri
Kontrplak kutusu
Teslim süresi
6-10 iş günü
Ödeme koşulları
, T/T
Yetenek temini
Ayda 20 takım
Ürün Tanımı
40kw Ultra High Frequency Induction Heating Machine Electrical Test Set
Integrating precise heating and electrical performance testing functions, it is specially designed for small and medium-sized metal workpieces, and is used to serve manufacturing, research and development, and quality inspection scenarios.
Technical Parameters
Parameter Value
Max Fluctuating Power 40KW
Fluctuating Frequency 10-50KHZ
Heating Current 400-1800A
Input Voltage (3Phase), 380V
The Flow Rate of Cooling Water 0.08-0.16Mpa, 9L/Min
Water Temperature Protecting Point 50°C
Product Features
  • Product line includes medium-frequency (15KVA~3000KVA) and high-frequency/ultra-high-frequency (3.2KVA~320KVA) equipment
  • Over 50 models available for various metal heating processes
  • Applications include quenching, surface heat treatment, annealing, welding, smelting, and more
Working Principle
  • Fully solid-state IGBT inverter module technology imported from Germany
  • Generates strong alternating magnetic field through induction coil
  • Eddy currents on workpiece surface enable rapid heating and instant temperature rise
Applications
  • Manufacturing: Surface hardening of gears/tooling, brazing of dissimilar metals, thermal assembly of micro-components
  • Quality Inspection: High-temperature testing of electrical terminals/motor windings
  • Research and Development: Thermal conductivity testing, small-scale melting of precious metals
