Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

fire testing machine for building materials

surface burning characteristics testing equipment

flammability testing equipment with warranty

Menşe yeri:

Çin

Marka adı:

YUYANG

Sertifika:

CE

Model numarası:

YY410

Bizimle İletişim
Bir teklif isteği
Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment
Ürün Ayrıntıları
Kontrplak çatı kaplama malzemesi, boyut:
1.300 (W) × 1.000 (d) × 120 (h)
Güç kaynağı:
380V 50Hz üç fazlı beş telli sistem
Test tüneli fırını:
3.62m, açık uç kesit 0.45m * 0.3m, Firebrick maks sıcaklık 2500 ℃
Brülör açısı:
45 °
Gaz kaynağı:
>% 95 propan gazı; （Kullanıcı kendilerini sağlamalıdır）
Gaz basıncı:
10kpa~50kpa
Vurgulamak:

fire testing machine for building materials

,

surface burning characteristics testing equipment

,

flammability testing equipment with warranty

Ödeme ve Nakliye Şartları
Min sipariş miktarı
Set/set
Fiyat
pending
Teslim süresi
5
Ödeme koşulları
L/C, T/T
Yetenek temini
20
İlişkili Ürünler
İyi bir fiyat. Building Materials Ignitability Flammability Tester for Single Flame Source Test çevrimiçi

Building Materials Ignitability Flammability Tester for Single Flame Source Test

En İyi Fiyatı Bulun
İyi bir fiyat. Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment çevrimiçi

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

En İyi Fiyatı Bulun
İyi bir fiyat. YY-121 Building Materials Difficult Flammability Test Equipment çevrimiçi

YY-121 Building Materials Difficult Flammability Test Equipment

En İyi Fiyatı Bulun
İyi bir fiyat. Sınıf II A2 Biyolojik Güvenlik Dolabı 780 mm Derinlik çevrimiçi Video

Sınıf II A2 Biyolojik Güvenlik Dolabı 780 mm Derinlik

En İyi Fiyatı Bulun
Bizimle İletişim
86-769-26622869
Şimdi iletişime geçin
Ürün Tanımı
Fire Testing Machine for Building Materials
YY410 UL790 Fire Performance Tester for evaluating surface burning characteristics of building materials and photovoltaic cell modules.
Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 0 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 1 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 2 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 3 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 4
Scope of Application
This equipment evaluates roofing materials exposed to simulated exterior building fires, assessing fire resistance at distances of 1.82m, 2.4m and 3.9m to Class AC. Also suitable for testing photovoltaic cell module fire resistance.
Compliance Standards
  • UL 1730 Smoke Detector Monitors
  • UL 790 Standard Test Method for Fire Testing of Roof Coverings
  • IEC 61730-2 Photovoltaic Modules Appendix A Fire Tests
  • ASTM F 108-04 Standard Test Method for Fire Tests of Roof Coverings
  • NFPA 256 Fire Tests for Roof Coverings
Performance Parameters
  • Plywood roof covering material: 1,300(W) × 1,000(D) × 120(H) mm
  • Non-combustible test plate to block tempering
  • Adjustable fan plate: 1,440(L) x 940(H) mm
  • Corrosion-resistant steel main frame: 1,020(L) x 1,000(D) x 1,473(H) mm
  • Non-combustible panel assembly: 330(W) x 2,130(D) x 584(H) mm
  • Test panel air flow rate: 19±8 km/h (5.5m/sec) with anemometer
  • Independent air duct with honeycomb filter screen

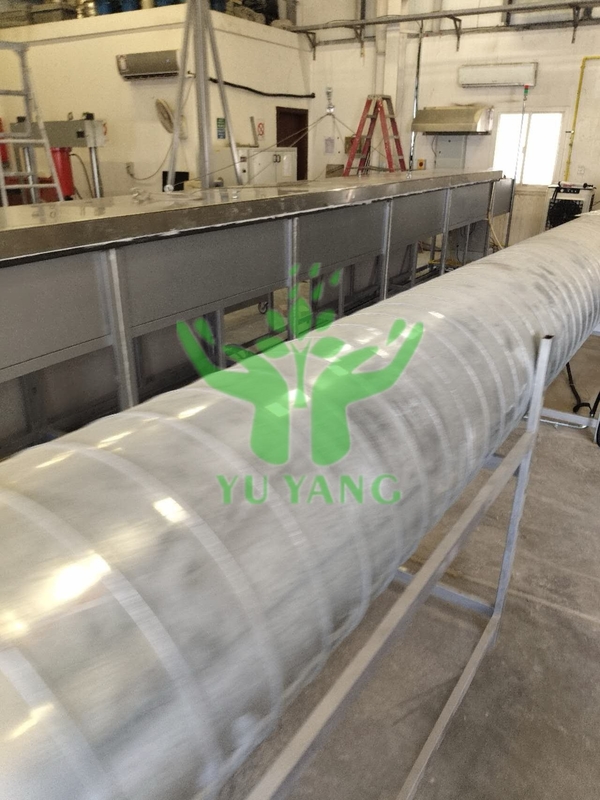

  • Stainless steel air duct: 2,130(W) x 762(H) x 5,200(L) mm
  • 380V, 50HZ three-phase power fan with reverse system (min flow 300m³/min)
  • Gas burner: 1.12m long, diameter 60.3mm with 12.7mm wide slit
  • Gas burner capacity: 22,000Btu/min (387kWh) with automatic flow adjustment
  • Automatic ignition system (minimum 1.8kVp)
  • Data acquisition system with LabView programming and NI modules
  • Industrial control computer with 21-inch monitor and test software
  • Sample ignition device adjustable to 880±10℃
  • Rotatable metal grid for material support
  • Advanced temperature and fan wind speed control systems
  • Comprehensive gas leakage and carbon monoxide safety alarms
  • Power requirements: 380V 50HZ three-phase, ≥30KW
Equipment Description

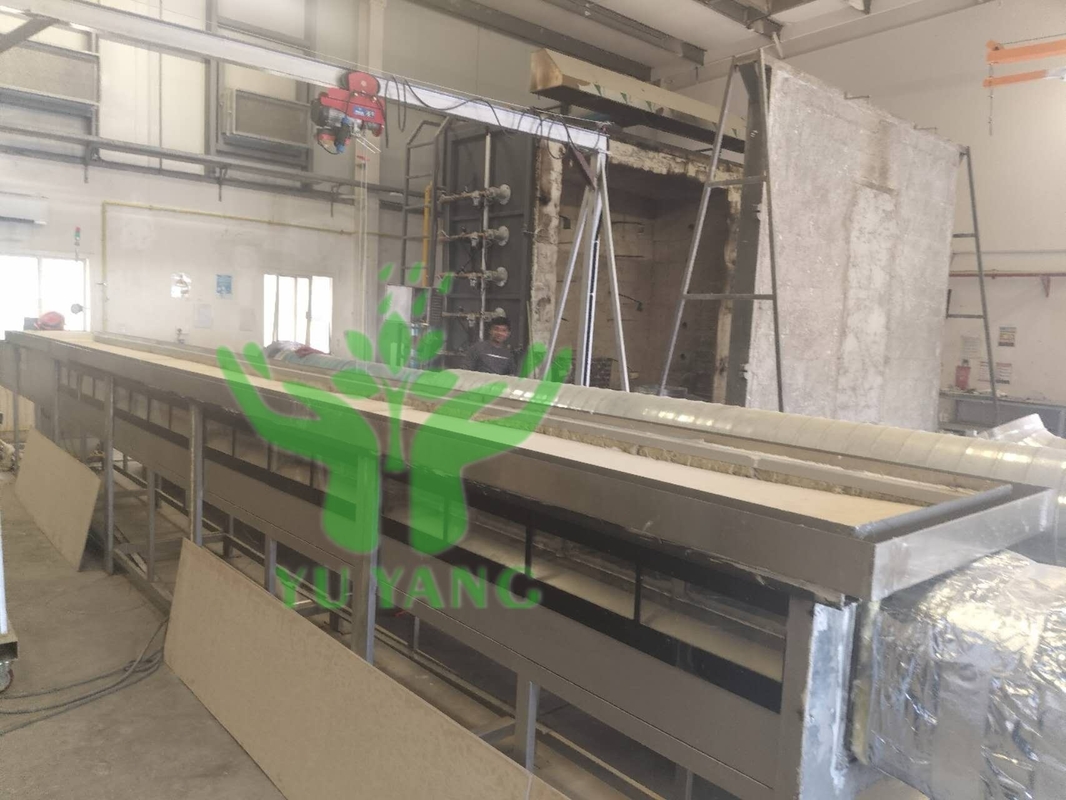

The system consists of an adjustable test platform, non-combustible panel assembly, gas burner, supply fan with air channel, isolation plate, and fire panels. Tests must be conducted in a controlled environment (10-32°C) with all openings closed to prevent external interference.
Before testing, mortar should fill gaps between roof covering material and frame to prevent air/flame passage. Airflow must be calibrated using 1m×1.3m plywood at specified inclination (127mm/300mm).
Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 5 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 6
