Name: Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW-005
Price: 25,000.00 USD
Availability: InStock

Evde > Ürünler > tel Test Cihazları >

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

copper wire elongation tester

cable elongation test machine

wire testing equipment with warranty

Menşe yeri:

ÇİN

Marka adı:

YUYANG

Sertifika:

Model numarası:

YYW-005

Bizimle İletişim

Bir teklif isteği

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

Ürün Ayrıntıları

Çap Aralığı:

0.08 ~ 0.8 mm

Çekim hızı:

250 ~ 300mm/minu

Başlangıç Uzunluğu:

250mmu

Genişletilmiş menzil:

0 ~% 48

Ekran doğruluğu:

%0,1

Giriş gücü:

AC220V 50/60Hz

Boyut:

50 × 21 × 24 (cm)

Ağırlık:

23kg

Vurgulamak:

copper wire elongation tester

cable elongation test machine

wire testing equipment with warranty

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Küme/Kümeler

Fiyat

pending

Teslim süresi

Ödeme koşulları

L/C, T/T

Yetenek temini

İlişkili Ürünler

Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester

En İyi Fiyatı Bulun

Video

En son 220V Elektronik İzleyici Kablo ve Tel için İzolasyon Kaplama Üzerine 1 Yıllık Garanti

En İyi Fiyatı Bulun

Video

Tel Havalandırmalı Yaşlandırma Test Odası, Büyük Temperli Cam Pencereli Kablo Test Ekipmanı İçin

En İyi Fiyatı Bulun

Video

Bakır Tel Kablo Kıvılcım Test Cihazı, 250-300mm / Min Uzama Test Cihazı

En İyi Fiyatı Bulun

Bizimle İletişim

86-769-26622869

Şimdi iletişime geçin

Ürün Tanımı

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

Product Specifications

Attribute	Value
Diameter range	0.08~0.8mm
Drawing speed	250~300mm/min
Starting Length	250mm
Extended range	0~48%
Display Accuracy	0.1%
Input Power	AC220V 50/60Hz
Size	50×21×24(cm)
Weight	23KG

Product Description

The instrument is used to test the elongation characteristics of aluminum, copper, iron and other metal materials. This machine is made of metal materials do damage elongation test; advanced software design and sophisticated electronic sensor technology to measure the amount of tensile test, and automatically converted to LED than the numerical display, easy to read accurate, simple, popular.

Technical Specifications

Sample sampling length	250mm
Specimen diameter	φ0.03-φ1.0mm
Extension range	0-60mm
Measurement Accuracy	±1%
Working power	AC220V, 50Hz, 2A
Machine size	650250250mm

Usage Instructions

Connect the AC110V power supply to the elongation test stand.

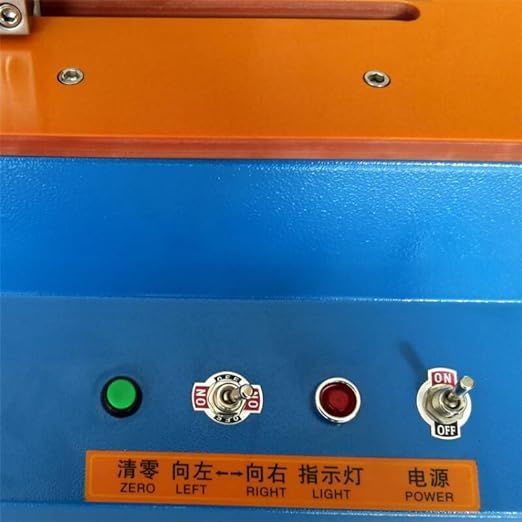

Pull out the power switch to the ON position.

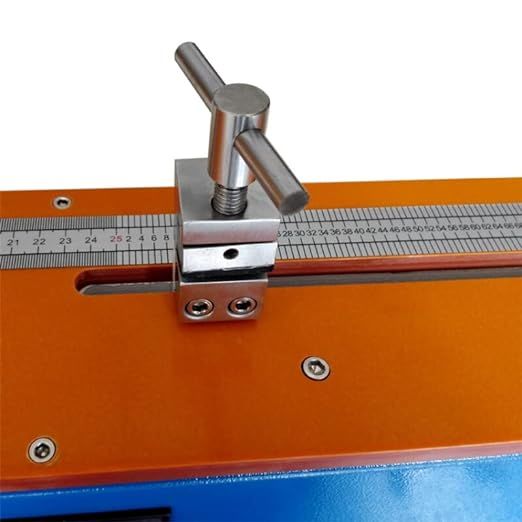

Pull the steering switch to the left. After the motor limit stops, take the 250mm long test object and put it in the left fixture for fastening, then straighten it and put it in the right fixture for fastening.
Press the reset switch to reset, pull the direction switch to the right, the motor slowly tensile test, the counter will be counted according to the percentage of frequency.
The test product is broken after stretching a certain length, the motor will automatically stop, the counter will stop counting, save the test value end of the test. The value displayed by the LED is the stretch length of the product.
For the accuracy of the test, the machine is equipped with a scale. After the test, the scale value corresponding to the indicator can be compared with the display value. To ensure the error of test results.
After the test, turn off the power switch and unplug the power cord.

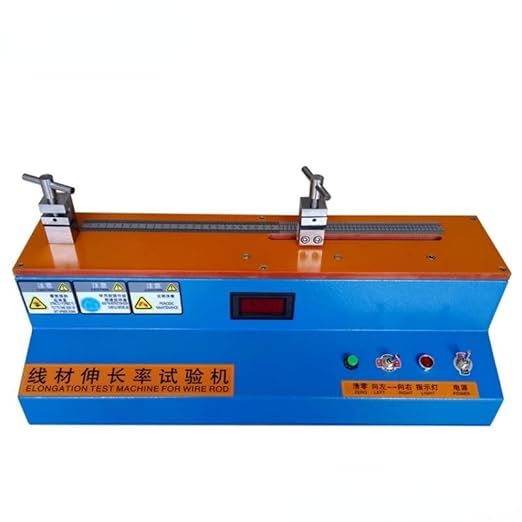

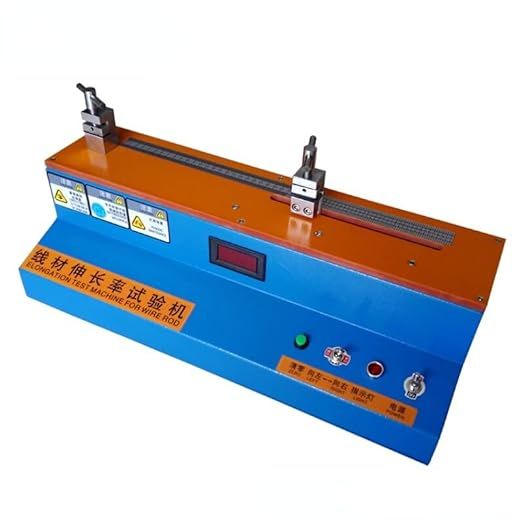

Product Images
