Name: DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW006
Price: 2,502.00 USD
Availability: InStock

Evde > Ürünler > tekstil test ekipmanları >

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

DIN abrasion test machine for textiles

ISO 4649 compliant textile tester

textile abrasion testing instrument

Menşe yeri:

ÇİN

Marka adı:

YUYANG

Sertifika:

Model numarası:

YYW006

Bizimle İletişim

Bir teklif isteği

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

Ürün Ayrıntıları

Yük:

2.5 ± 0.1n; 5 ± 0.1n; 10.0 ± 0.2n

numune boyutu:

Çap 16mm, kalınlık 6-16mm

Dönen Davul Çapı:

150mm

Dönen Davul Hızı:

40 ±1 DEVİR/DAKİKA

Zımpara bezi Şartname:

60 #, 425 ± 473 ± 1.5 (mm)

Deneme süresi:

40m (yaklaşık 84 rotasyon)

Yatay yer değiştirme:

4.2mm / rotasyon

Test kolu ağırlığı:

250 ± 5 (g)

Kaydırma vidası:

6 diş / inç

Sınır rotasyonu:

85 rotasyon

Vurgulamak:

DIN abrasion test machine for textiles

ISO 4649 compliant textile tester

textile abrasion testing instrument

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Küme/Kümeler

Fiyat

pending

Ambalaj bilgileri

85x32x40 cm

Teslim süresi

Ödeme koşulları

Akreditif, D/A, T/T

Yetenek temini

İlişkili Ürünler

Video

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

En İyi Fiyatı Bulun

Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

En İyi Fiyatı Bulun

Video

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

En İyi Fiyatı Bulun

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

En İyi Fiyatı Bulun

Bizimle İletişim

86-769-26622869

Şimdi iletişime geçin

Ürün Tanımı

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

Product Specifications

Attribute	Value
Load	2.5±0.1N; 5±0.1N; 10.0±0.2N
Specimen Size	Diameter 16mm, thickness 6-16mm
Rotating Drum Diameter	150mm
Rotating Drum Speed	40 ±1RPM
Emery Cloth Specification	60 #, 425 ±473 ±1.5 (mm)
Testing Length	40M (about 84 rotations)
Horizontal Displacement	4.2mm / rotation
Test-Arm Weight	250 ± 5 (g)
Shift Screw	6 teeth / inch
Limit Rotation	85 rotations

Product Overview

DIN Abrasion Test Machine ISO 4649 & ASTM D5963 Compliant Textile Testing Instrument for Counting Results

Product Description

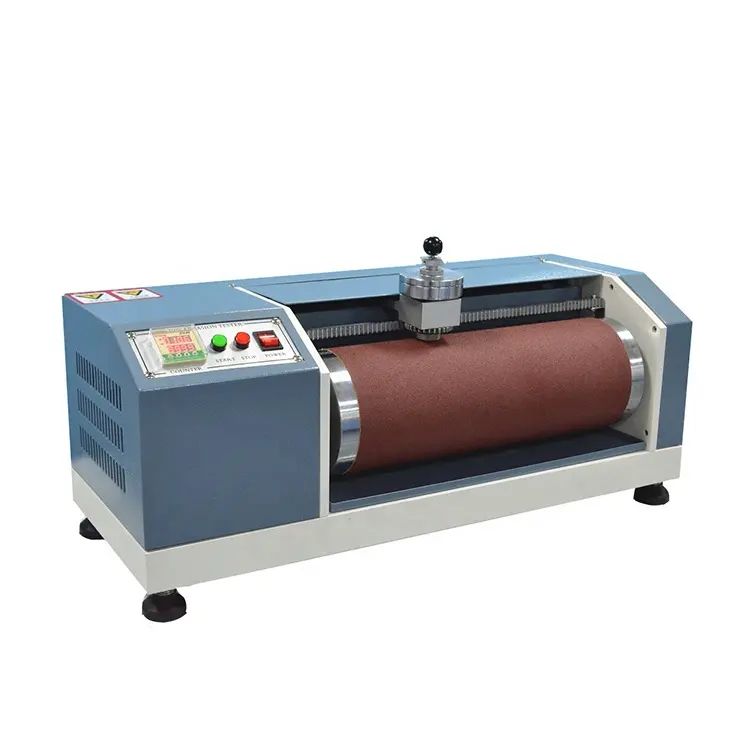

DIN Abrasion Test Machine For Rubber Plastic Leather is designed to test surface friction using a specific piece of sandpaper. After friction testing for a predetermined time, the condition of the material surface, weight, volume, and thickness are assessed to determine the abrasive nature of materials.

Testing Principle

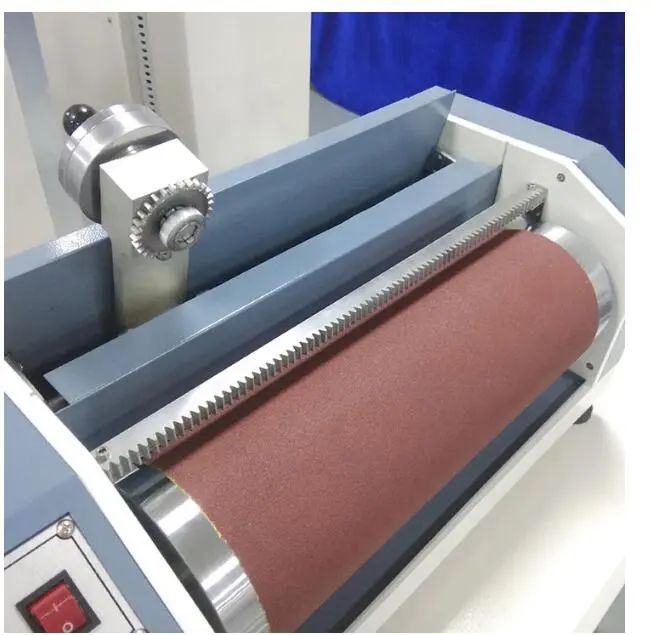

Under predetermined contact pressure and given area, the specimen is tested with sandpaper at an angle to measure abrasion resistance. The sandpaper is affixed to the surface of the drum, and samples are pressed against the drum. The specimen moves laterally along the roller, producing abrasion resistance at one end. The test measures mass loss of the specimen, with volume abrasion calculated using the specimen's density.

Compliant Standards:

DIN ISO 4649:2006-11 (E) - Rubber, vulcanized or thermoplastic - Determination of abrasion resistance using a rotating cylindrical drum device
ASTM D5963 - 04(2010)e1 Standard Test Method for Rubber Property--Abrasion Resistance (Rotary Drum Abrader)
